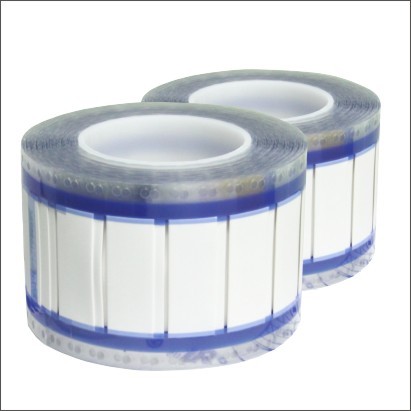

RSFR Heat Shrink Identification Sleeve

Product Item : WD-IDT-002
Category： Identification Tube
Identification Sleeve
Product description：RSFR marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. Standard SAE-AS 81531, MIL-STD-202F/Method 215J, UL224，RoHS etc
INQUIRY EMAIL

Description

RSFR marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. When RSFR is printed with Woer recommended printers and ink ribbons, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids.

Standard SAE-AS 81531, MIL-STD-202F/Method 215J, UL224，RoHS etc

Features

Material	The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation.
Application range	commercial , Industrial environment
Operating temperature range	-55---+125 ℃
Minimum recovery temperature	+125 ℃
Maximum storage temperature	+50 ℃
Shrink ratio	2:1, 3:1
Color	White, Yellow, other color is available if ordered
Printing mode	Single sided printing and Double sided printing formats available
Supplied mode	Either Continuous type or Ladder format type is available
Recommended Printers	Thermal transfer printer
Recommended Ribbons	N85 resin ribbon, Black, 100mm(width)*300m(length)
