Technical Data
| Property | Test Method | Standard Value |
| Heat Shock | 160℃，4h | No Crack |
| Tensile Strength | ASTM-D-638 | ≥8MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
|
Tensile Strength Variation After Heat Aging（130℃x168h） |
ASTM-D-5510 | ≤±20% |
|
Elongation at Break Variation After Heat Aging（130℃x168h） |
ASTM-D-5510 | ≤±20% |
| Flammability（Oxygen Index） | IEC 4589 | ≥30% |
| Hardness（Shore A） | ISO 868 | ≤90 |

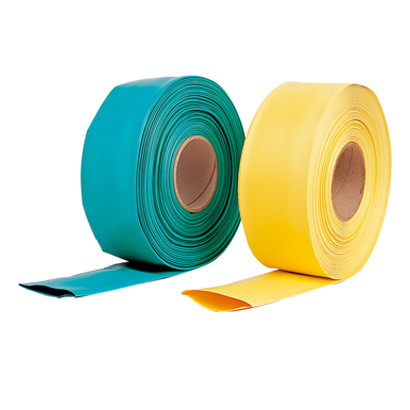

Electrical Property of Heat Shrink Busbar Tube
Power Frequency Voltage
Withstanding
Specification Table
Item
Test Method
Standard Value
10kV
35kV
Volume Resistivity
IEC 60093
≥1x1014Ω·cm
Dielectric Strength
IEC 60243
≥25kV/mm
DL/T 1059
42kV
95kV
Impulse Voltage
DL/T 1059
75kV
185kV
10kV WMPG Series
| Spec. | As Supplied/mm | After Recovered/mm |
Standard
Length /mm(±5) |
Application /mm | |||
|
ID (Min) |
Wall Thickness
(±20%) |
ID (Max) |
Wall
Thickness (±10%) |
Width of Rectangular Busbar |
Diameter of Circular Busbar |
||
| WMPG-20 |
20 |
1.0 |
10 |
2.4 |
1000 |
20 |
15 |
|
WMPG-25 |
25 |
1.0 |
12 |
2.4 |
1000 |
25 |
15 |
|
WMPG-30 |
30 |
1.1 |
14 |
2.4 |
1000 |
30 |
20 |
|
WMPG-40 |
40 |
1.0 | 17 | 2.4 | 1000 |
40 |
30 |
|
WMPG-50 |
50 |
1.1 | |||||
