3:1 Shrink Ratio · Ultra Thin Wall · Flame Retardant · -55°C to 135°C · RoHS Compliant` - 副本

Product Item : RSFR-135G(3X)
Category： Heat shrink tube

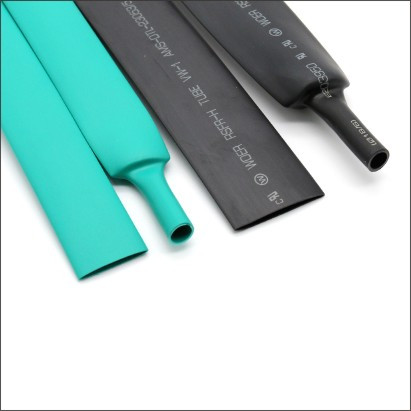

Product description：`Ultra thin wall, very flexible heat shrink tubing 3:1. Flame retardant, -55°C to 135°C, RoHS, SAE-AMS-DTL-23053/5. OEM manufacturer Dongguan. Export USA & Europe.`
INQUIRY EMAIL

Property	Test Method	Typical Performance
Tensile strength （ MPa ）	ASTM D 2671	≥10.4
Ultimate elongation （ % ）	ASTM D 2671	≥ 2 00
Tensile strength after heat aged （ MPa ）	1 75 ℃×168h	≥7.3MPa
Ultimate elongation after heat aged （ % ）	1 75 ℃×168h	≥100
Longitudinal chang(%)	ASTM D 2671	-5% ～ +5%
Flammability	ASTM D 2671 C method	VW-1
Voltage withstand	UL 224, 2500V, 60s	No breakdown
Heat shock	UL 224 , 250℃×4h	No cracks, flowing or dripping
Dielectric strength （ kV/mm）	ASTM D 149	≥ 15
Volume resistivity （ Ω·cm）	ASTM D 876	≥10 14

SIZE		AS SUPPLIED	AFTER RECOVERY		STANDARD PACKAGE
Inch	mm	INTERNAL DIAMETER mm	INTERNAL DIAMETER MAX mm	WALL THICKNESS NOM mm	SPOOL LENGTH M/spool
1/16	1.5	1.5	≤0.5	0.45±0.10	200
1/8	3.0	3.0	≤1.0	0.55±0.10	200
3/16	4.5	4.5	≤1.5	0.60±0.10	100
1/4	6.0	6.0	≤2.0	0.65±0.10	100
3/8	9.0	9.0	≤3.0	0.75±0.15	50
1/2	12	12.0	≤4.0	0.75±0.15	50
5/8	15	15.0	≤5.0	0.80±0.15	50
3/4	18	18.0	≤6.0	0.85±0.15	50
1	24	24.0	≤8.0	1.00±0.20	25
1-1/4	30	30.0	≤10.0	1.15±0.20	25
1-1/2	39	39.0	≤13.0	1.50±0.20	25
2	50	50	≤16.0	2.50±0.20	25
	60	60	≤20.0	2.60±0.20	25
	70	70	≤23.0	2.60±0.20	25
3	80	80	≤26.0	2.60±0.20	25
	90	90	≤30.0	2.60±0.20	25
4	100	100	≤33.0	2.60±0.20	25
